Supported Formats

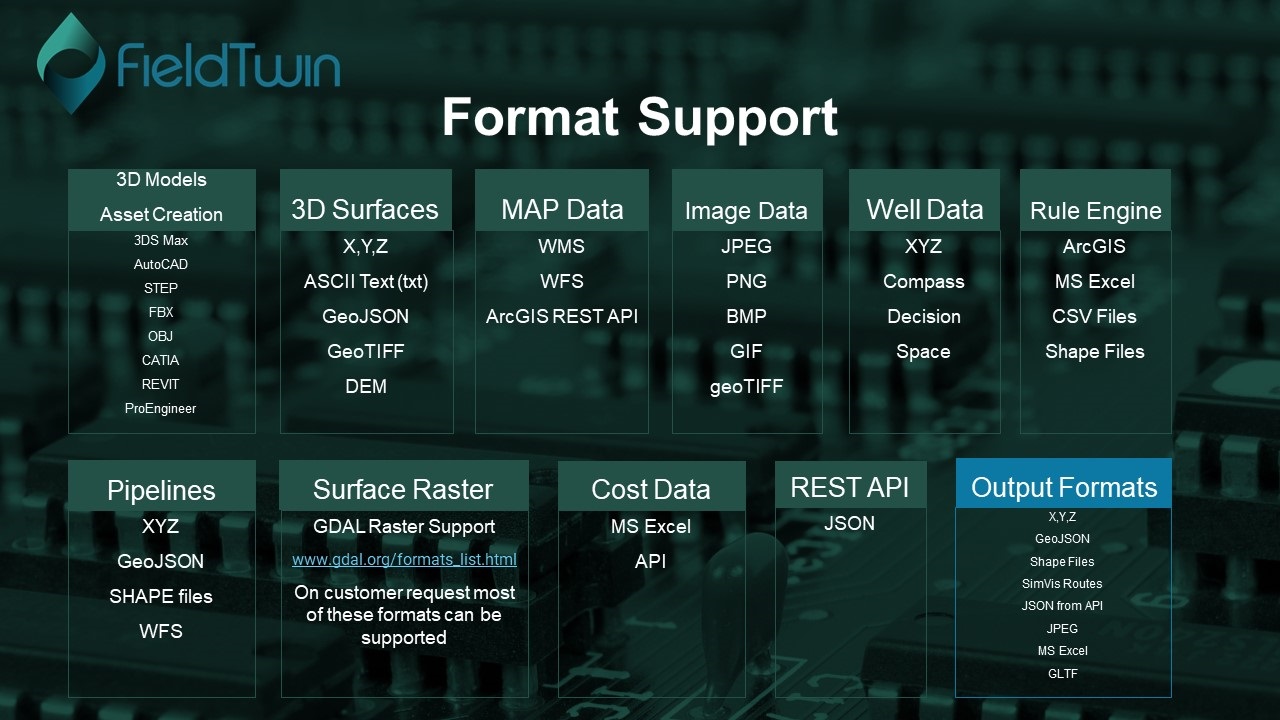

FieldTwin Design is able to ingest data from a multitude of input sources such as various file formats and online data/web services. This is an overview over the various formats we support:

Supported Formats

3D Models

To allow for real time collaborative field design using modern cloud and browser based technology allowing you access from anywhere at anytime we offer a Generic Library of 3D models that are optimized for online streaming. The format used is:

.gltf

You can read more about the standard here:

https://www.khronos.org/gltf/

To create your own private asset libraries and have them available to your instance, please contact us for more information as we support most 3D Engineering formats in the 3D model optimisation, conversion and asset publishing process such as 3DS Max, AutoCAD, REVIT, SolidWorks, and STEP/FBX/ OBJ files.

3D Models Viewing

For FieldTwin Asset Viewing we support the following:

3DS, FBX, OBJ, STEP, STP, GLTF, GLB, STL, PLY, and DAE

3D Surfaces

This allows you to add Bathymetry and/or Survey data to your Field layout in GeoTiff or X,Y,Z (point-cloud) format. You can add multiple Bathymetry/Surveys to a sub-project. FieldTwin will then height- or depth-sample if you will each Bathymetry layer individually, and where there is no Bathymetry data the default “Sea Level” value from the Project settings will be used.

  • X,Y,Z
  • ASCII Text (txt)
  • GeoJSON
  • GeoTIFF
  • DEM
  • DSM
  • PLY
  • PTS

Point Clouds

FieldTwin supports the following point cloud formats:

  • XYZ
  • LAS, LAZ,

2D Images

We support imagery to be added to your field layout as layers. The image formates supported are:

JPEG, JFIF, PNG, PJP, BMP, HEIC, GIF, XBM, WEBP, TIFF, ICO, and SVG

For more information see Picture

Media

We support the following video formats:

MP4, WEBM, OGG, MOV, and AVI

Map Data

We support the following:

WMS, WFS, and ArcGIS REST API

Well trajectories

We support the most common well data formats from applications such as Compass, DecisionSpace etc. Typically well trajectories are ingested from XYZ text files, or through the API.

FieldTwin also supports the SiteCom REST API for Well Trajectory ingestation. REad more here SiteCom

For more information see Well from File

Rules Engine

The Rules Engine allows you to create a set of rules with conditions when you import data from either a file such as a Shape, CSV or a MS Excel file. Or you can connect directly to an ArcGIS Map server. The rules you create based on the input data will trigger corresponding FieldTwin Actions.

FieldTwin can then auto-create a field layout including 3D assets and connections using your set of import rules. You can also import and export your rule set to use it in multiple projects. A typical use case could be to auto create brownfield assets or connections for tie in, slot in considerations etc.

For more information see Rules Engine

Pipelines

If you want to ingest pipeline data this can be done by importing a connection profile in x,y,z ASCII format.

For more information see Support for Text and x,y,z files

You can also import connections or pipelines from files as follows:

GeoJSON

For more information see Support for GeoJSON files

Shape file import

For more information see Support for SHP files import

Import Profile from WFS

For more information see Import Profile From WFS

Surface Raster formats

Read more about the raster formats we handle here :

www.gdal.org/formats_list.html

Cost Data

In addition to the built in cost functionality in FieldTwin we also support the following:

MS Excel, CSV

In addition we also support Cost Assist by Rystad Energy. Read more about it here Cost Assist

Seismic

FieldTwin allows you to view SGY, and SEGY data.

Documents

FieldTwin allows you to view the following document formats directly:

  • Adobe PDF
  • MS Excel (XLS, XLSX, XLSB, XLSM. and CSV)

Output Formats

FieldTwin support export of the following data formats:

  • XYZ ASCII Text
  • GeoJSON, JSON
  • SHP, SVG
  • CAD scripts
  • SimVis
  • JPEG
  • MS Excel
  • GLTF
  • WEBM, MP4

For more information see Export Menu
